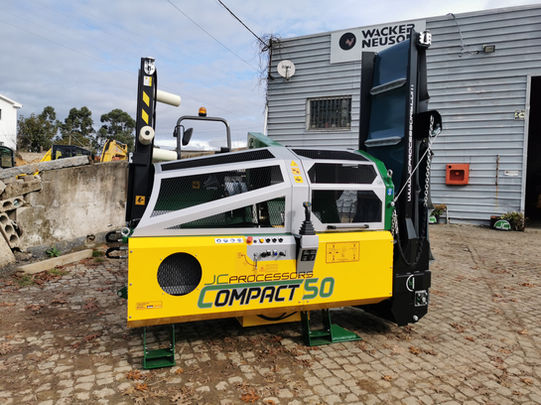

JC COMPACT 50 PTO
Firewood processor towed to the 3 points of the tractor, mainly indicated for woods of the Eucalyptus globulus family.

HIGH PERFORMANCE, EFFICIENT AND MAINTENANCE-FREE HYDRAULIC ENGINE

CUTTING SYSTEM:

Conjunto peças motor embolos.png

WOOD SPLITTER

Up to 25 tons of force, two splitting speeds and the force automatically adjusts to the hardness of the wood.

COMMAND SYSTEM:

Control center integrated into the machine's console equipped with a joystick.

SPECIFICATIONS:

Splitting and cutting measurements:

Maximum trunk diameter:
5-50cm


Maximum cutting length:

20-50 cm (adjustable every 5 cm) with marker for 33 cm

Splitter's Power:

20 ton / 200kN - STANDARD

25 ton / 250kN - OPTIONAL

Machine Measurements and Weight:

Height (AL):

178 cm

Width (LG):

155 cm

Weight:

+/- 1800 kg


AL


LG

Working position:

A1

30º

B1

Height (A1):

257 cm

Length (B1):

787 cm


A2

B2

Transport Position:

Height (A2):

273 cm

Length (B2):

263 cm

Power Requirements:

Tractor minimum power:

Minimum 55Hp for work (100Hp for transport)

More information:

Chain saw lubrication oil: 13 liters

Machine feeder: Rubber conveyor belt

Cutting system: The chain is tensioned by an adjustment screw and lubricated by the integrated automatic lubrication system.

SECURITY DOOR

Allows the operator to work with the machine in complete safety and protection.

LOG LENGTH GUIDE

Allows the operator to adjust the cutting length hydraulically between 20cm and 50cm.

FEEDING CONVEYOR

Guide to direct the trunk with the hydraulic support to prevent the trunk from falling or turning.

SPLITTING WEDGES

STANDARD (go along with the machine):

nº 2 - Wedge for splitting wood into 2-4 parts

nº 3 - Wedge for splitting wood into 2-6 parts

OPTIONAL:

nº 1 - Wedge for splitting wood into 2 parts

nº 4 - Wedge for splitting wood into 2-8 parts

SET LÂMINAS_2.png

photo and video gallery:

DEMONSTRATION OF THE JC COMPACT 50 MODEL
